仕様・性能| FRAME | FRM AL MARIN FAIRFAX G 700CX381 V |
|---|
| FORK | FRK ST MARIN FAIRFAX G 700Cx559 V |
|---|
| HANDLE BAR ALL SIZE | HANDLEBAR HSINLUNG; MTB AL 300 BT; SBBK; ALLOY BUTTED; WIDTH 580MM; RISE 5 DEG; BEND 9DEG; BAR BORE 31.8MM;FLAT TOP, W/ MARIN LASER LOGO (HB-19-1001) |
|---|
| HANDLE STEM | HANDLE STEM;HSIN LUNG;TDS-C301-8FOV;SABK;-,ALLOY,AHEAD STEM,75MM,6DEG,1-1/8",31.8MM,ISO-M,W/ BOLT,41MM,W/O LOGO,W/ BLACK BOLT |
|---|
| HANDLE GRIP / BAR TAPE | HANDLE GRIP; VELO; VLG-1807; BLACK KRATON; 135/135MM, CLOSED END, WITH INNER PLUG VLP-45(BLACK), W/MARIN LOGO |
|---|
| HEAD SET | HEAD SET; FSA; TH-888; BLACK; H015803300ED00, 1 1/8”, H/T ID:34MM, -, - |
|---|
| SADDLE | SADDLE;FOMING;DDK-5095;BLACK;VXTB708G9BA2MRBK,-,-,PPBASE,BLACKGUARD,W/O ELASTOMER,STEELBLACKRAIL,W/SCALE,W/O CLAMP,-,W/O LOGO,TEM99 BLACK COVER,GRAY FRONT AND REAR BUMPER,W/ MARIN SA-20-2010 CUSTOM DESIGN |
|---|
| SEAT POST | SEAT POST; HSIN LUNG; SP-C255; SABK; ALLOY, 27.2, 300MM, EN-M STANDARD, BLACK BOLTS, W/O LOGO |
|---|
| SEAT CLAMP | SEAT CLAMP; PROMAX; MX-112; SAND ANODIZED BLACK; ALLOY, 31.8MM, W/ BOLT , W/ MARIN LOGO ARTWORK (MGFID# SC-19-0001) |
|---|
| CHAINWHEEL | CHAINWHEEL; PROWHEEL; TB-CY01; 3PCS ALLOY FORGED CRANK ARM SAND BLAST BLACK; 46-30T; STEEL CHAINRING BLACK; GUARD: W/ CHAINGUARD, COMPATIBLE FOR 7/8 SPEED, W/O LOGO |
|---|
| BB SET | BB SET; FEIMIN; FP-B902W; BLACK; 2 PCS; THREAD BC; 1.37X24T; BORON AXLE; 68/122.5; ALUMINIUM SHEATH/STEEL CUPS; BARRELPOLISHED
SHEATH/ PHOSPHATED CUPS |
|---|
| PEDAL | PEDAL; FPD; BLACK BODY; BORON AXLE LOOSE BALLS; W/ REFLECTORS SNAP IN |
|---|
| CHAIN | CHAIN Z-8.3 GRY/BWN 1/2"X3/32"X12000L |
|---|
| CASSETTE/FREEWHEEL | CASSETTE/FREEWHEEL;SHIMANO;CS-HG200-7;BROWN;ACSHG2007232T,7SP,SPROCKET,T-32T,L-12T,- ,- |
|---|
| SHIFTING LEVER - LEFT | SHIFT/BRAKE LEVER, ST-EF500-2L, LEFT 2-SPEED, 1800MM INNER, EZ-FIRE PLUS, 2F-ALLOY, FOR V-BRAKE, BLACK, BULK; ASTEF50022LSBL |
|---|
| SHIFTING LEVER - RIGHT | SHIFT/BRAKE LEVER, ST-EF500-7R, RIGHT 7-SPEED 2400MM EZ-FIRE PLUS, 2F-ALLOY, FOR V-BRAKE, BLACK , BULK; ASTEF5002RV7CL |
|---|
| FRONT DERAILLEUR | FRONT DERAILLEUR, FD-TY710-2-TS3, TOURNEY, FOR 2X7/8, TOP-SWING, DUAL-PULL, 34.9MM BAND(W/31.8MM ADAPTER), CS-ANGLE:63-68, FOR TOP GEAR:46T, CL:48.8MM, BULK; AFDTY7102TSM3 |
|---|
| REAR DERAILLEUR | REAR DERAILLEUR; SHIMANO; RD-TY300; BLACK; ARDTY300D, 6/7-SPEED, -, DIRECT ATTACHMENT |
|---|
| BRAKESET | BRAKE;TEKTRO;855AL;BLACK;V-BRAKE,ALLOY,LINEAR SPRING,ARM LENGTH:110MM,FRONT AND REAR,W/O LEAD PIPE,PAD:836.12 EN,ALL STAINLESS |
|---|
| FRONT INNER WIRE | BRAKE INNER WIRE; JAGWIRE; GAR (GALVANIZED STEEL); SLICK SHIELD SILVER; -, 1.6 x 1600MM, B02:7X6MM |
|---|
| REAR INNER WIRE | BRAKE INNER WIRE; JAGWIRE; GAR (GALVANIZED STEEL); SLICK SHIELD SILVER; -, 1.6 x 1600MM, B02:7X6MM |
|---|
| FRONT TIRES | TIRE/TUBE; DELI; SA-234; BLACK; -, 700CX40C (37-622), WIRE, W/O LOGO, W/ FV VALVES, W/HEXAGONAL LOCK RING |
|---|
| REAR TIRES | TIRE/TUBE; DELI; SA-234; BLACK; -, 700CX40C (37-622), WIRE, W/O LOGO, W/ FV VALVES, W/HEXAGONAL LOCK RING |
|---|
| RIM TAPES | RIM TAPE; TAIWAN;NYLON ; RED; JN702005R, 700C x 20MM |
|---|
| RIMS | RIMS; JHT; HLQC-02AB; BLACK/CNC; -, DOUBLE WALL, 700X1.50-1.75, 32H, FV, W/SAFETY LINE, W/O STANDARD DECAL |
|---|
| SPOKES | STAINLESS SPOKE BLACK & BRASS NIPPLE, 14G |
|---|
| FRONT HUB | FRONT HUB;FORMULA;FM-21 FQR;BLACK;-,ALLOYV BRAKE ,9 MM,100,108,BLACK QR24,32H,W/O RUBBER CAP,W/O LOGO,A:109MM |
|---|
| REAR HUB | REAR HUB;FORMULA;FM-32-7QR;BLACK;- ,ALLOY,QR10,135,145,BLACK QR24,32H,W/ RUBBER CAP,- ,W/O LOGO,FOR CASSETTE 7SP,- |
|---|
| SPOKE PROTECTOR | FOR 32H, 42T, DISC BRAKE |
|---|
| KICKSTAND | KICKSTAND; STAND WELL; SW-MA027J; BLACK; ALLOY, 26-28”, -, ADJUSTABLE, -, W/ STAINLESS BOLT |
|---|

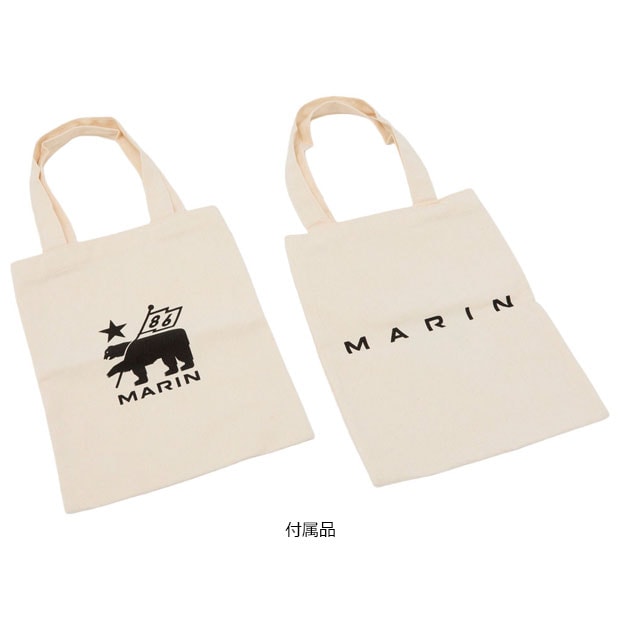

| TOTE BAG | COTTON BAG W/ PRINT SINGLE COLOR, MATERIAL NON WOVEN |
|---|
| OTHERS (WARRANTY CARD) | WARRANTY AND MANUAL BOOK FOR MARIN JAPAN |
|---|
