仕様・性能| SPEEDS: | 1 x 10 |
|---|
| WEIGHT: | 22.1 kg (48.7 lb) |
|---|
| GEAR INCHES: | 30" - 97" (2.36 - 7.72 m) |
|---|
| FOLDING SIZE: | 410 × 860 × 680 mm (16.1 × 33.9 × 26.8 in) |
|---|
| FOLDING TIME: | 10 sec |
|---|
| FRAME SIZES: | One size |
|---|
| DISTANCE: SEATPOST TO HANDLEBAR: | 62 - 69 cm (24.4 - 27.2 in) |
|---|
| DISTANCE: SADDLE TO PEDAL: | 67 - 110 cm (26.4 - 43.3 in) |
|---|
| SUGGESTED RIDER HEIGHT: | 147 - 195 cm (57.9 - 76.8 in) |
|---|
| MAX GROSS VEHICLE WEIGHT: | 125 kg (275.6 lb) |
|---|
| MAX LOAD WEIGHT: | 105 kg (231.5 lb) |
|---|
| MAX RIDER WEIGHT: | 105 kg (231.5 lb) |
|---|
| FRAME: | Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies, Vektron G2 Frame |
|---|
| FORK: | Tern Tarsus, 6061-Al, hydroformed |
|---|
| HANDLEPOST: | Physis 3D T-Bar, aluminum, 290mm, 12deg. / black |
|---|
| STEM: | Andros (G2), adjustable, 65mm / black |
|---|
| GRIPS/BAR TAPE: | Ergon GP10 |
|---|
| SADDLE: | Tern Porter+, patented GripPad design, PrimeGel padding |
|---|
| SEATPOST: | Telescope, Lite 2014-AL, 34.9/30.9mm |
|---|
| FRONT BRAKE: | Magura MT4, hydraulic disc |
|---|
| REAR BRAKE: | Magura MT4, hydraulic disc |
|---|
| BRAKE LEVERS: | Magura, hydraulic disc |
|---|
| FRONT WHEEL: | Kinetix Comp, QR, doublewall, disc, Novatec Hub, 100mm, 32H |
|---|
| REAR WHEEL: | Kinetix Comp, QR, doublewall, disc, Novatec Hub, 135mm, 32H |
|---|
| TIRES: | Schwalbe Big Apple, 406, 20×2.15 F/V |
|---|
| SHIFTER(S): | Shimano Tiagra, 1 x 10 spd |
|---|
| REAR DERAILLEUR: | Shimano Tiagra, 10 spd. |
|---|
| CRANKSET: | Vektron custom, forged 6061-AL crankarm, 52T |
|---|
| CASSETTE/FREEWHEEL: | Shimano 11-32T, 10 spd. |
|---|
| BOTTOM BRACKET: | Motor integrated |
|---|
| PEDALS: | MKS UX-D, QR right / standard left |
|---|

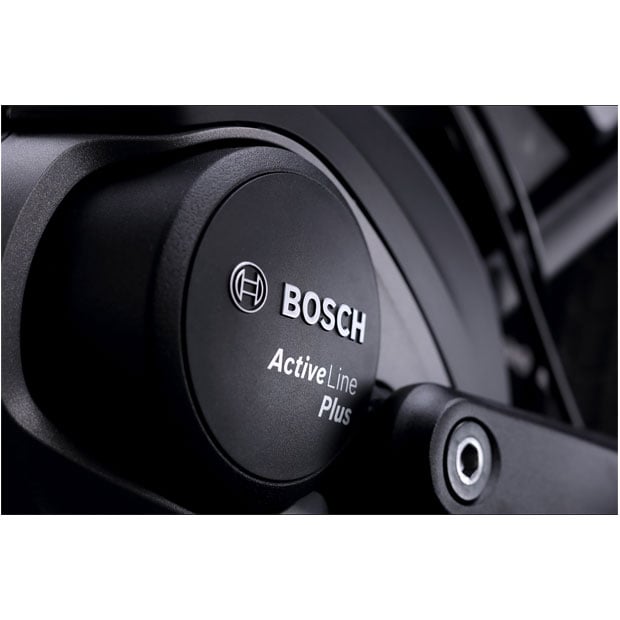

| MOTOR: | Bosch Active Line Plus, 36V/250W |
|---|
| BATTERY: | Bosch PowerPack 300 Wh |
|---|
| DISPLAY: | Bosch Intuvia |
|---|
| CHARGER: | Bosch Standard Charger |
|---|
| KICKSTAND: | URSUS MOOI, Rear mount |
|---|
| CLIP SYSTEM: | Magnetix 2.0 |
|---|
| FRONT LIGHT: | Tern Valo Direct, integrated, 41 lux/150 lumens |
|---|
| REAR LIGHT: | Herrmans H-Trace, for eBike |
|---|
