仕様・性能| Speeds: | 1 x 8 |
|---|
| Weight: | 22.8 kg (50.3 lb) |
|---|
| Gear Inches: | 31" - 95" (2.45 - 7.57 m) |
|---|
| Frame Sizes: | One size |
|---|
| Distance: Seatpost to Handlebar: | 60 - 64 cm (23.6 - 25.2 in) |
|---|
| Distance: Saddle to Pedal: | 68 - 110 cm (26.8 - 43.3 in) |
|---|
| Suggested Rider Height: | 160 - 195 cm (63 - 76.8 in) |
|---|
| Max Gross Vehicle Weight: | 150 kg (330.7 lb) |
|---|
| Max Rider Weight: | 120 kg (264.6 lb) |
|---|
| Frame: | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg |
|---|
| Fork: | Cargo, steel, EFBE approved: 150 kg |
|---|
| Stem: | Speedlifter, 150 mm extension, 3D Forged stem, 31.8 |
|---|
| Headset: | TH, cartridge bearings |
|---|
| Handlebar: | 580mm, 31.8, 6061-AL, No rise |
|---|
| Grips/Bar Tape: | Velo ergonomic, lock-on |
|---|
| Saddle: | Velo Comfort |
|---|
| Seatpost: | 31.6 mm, 6061-AL, micro-adjust clamp |
|---|
| Seatpost Clamp: | Tern Collar |
|---|
| Front Brake: | Tektro, hydraulic disc |
|---|
| Rear Brake: | Tektro, hydraulic disc |
|---|
| Brake Levers: | Tektro, hydraulic disc |
|---|
| Brake Cable & Housing: | Tektro, hydraulic disc |
|---|
| Front Hub: | Disc, aluminum, doublewall, 100mm, 32H |
|---|
| Rear Hub: | Disc, aluminum, doublewall, 135mm, 32H |
|---|
| Spokes & Nipples: | Stainless steel |
|---|
| Rims: | Kinetix Comp, for disc |
|---|
| Tires: | GMD, 20×2.35 or Schwalbe Big Apple, 406, 20×2.15 F/V |
|---|
| Shifter(s): | Microshift Mezzo, trigger, Thumb-tap shifters, 1×8 spd. |
|---|
| Rear Derailleur: | Microshift Mezzo, 8 spd. |
|---|
| Crankset: | Tern custom, forged 6061-AL crankarm, 52T |
|---|
| Cassette/Freewheel: | Microshift Mezzo, 11-34T, 8 spd. |
|---|
| Bottom Bracket: | Motor integrated |
|---|
| Chain: | KMC for eBike, 8 spd |
|---|
| Pedals: | Urban with non-slip surface |
|---|
| Shifter Cable & Housing: | SP |
|---|
| Motor: | Bosch Active Line Plus（24km/h） |
|---|
| Battery: | Bosch PowerPack 300Wh, 36V/8.2Ah |
|---|
| Display: | Bosch Purion |
|---|
| Range: | 300 Wh: 54 - 100 km |
|---|
| Charger: | Bosch Standard Charger, 100-240V, 800g, 190×86×54mm |
|---|
| Bell: | Aluminum |
|---|
| Chainguard: | SKS Chainblade |
|---|
| Kickstand: | Pletscher design, rear mount |
|---|
| Luggage Socket: | Combo Mount |
|---|
| Front Light: | Herrmans, 120 lumens |
|---|
| Rear Light: | Herrmans |
|---|
| Fenders: | Chromeplastic, stainless hardware |
|---|

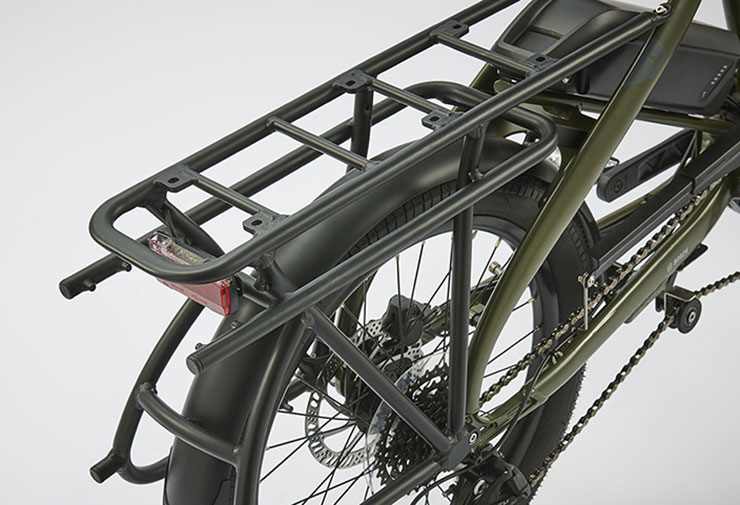

| Rack(s): | Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity |
|---|
